CombiTherm Centrifugal Pump

Product Image 1Product Image 2Product Image 3Product Image 4Product Image 5
Main Product Image
Click to zoom
1 / 5

Product Type(s) : Centrifugal Pumps

Description : Centrifugal pump for thermal oil / hot water applications

WHERE TO BUY

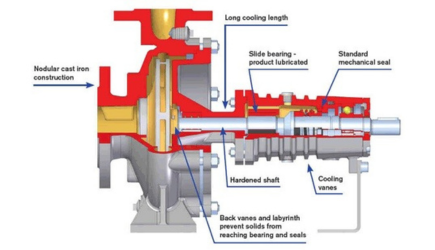

FEATURES

  • Nodular cast iron construction
  • Long cooling length displacing seal away from the pumped liquid
  • Back vanes and labyrinth prevent solids from reaching bearing and seals
  • Product lubricated slide bearing
  • Standard mechanical seal

CombiTherm ensures uniform process temperatures while keeping damaging heat away from seal faces and bearings. CombiTherm is designed to require no external cooling when working within the given parameters. The throttle bush, journal bearing and seal placement reduce circulation and temperature along the pump length. This greatly reduces the temperature at the seal face and bearings.

Suitable for

  • Thermal oil heat transfer: OEM systems, maintaining temperature in jacketed equipment
  • Marine and Floating Production Systems: Fuel tank heaters and fuel preheating, cargo and product heating, steam generation
  • Food: Ovens, fish frying, distillation of fatty acids and glycerine, fat softening, potato chips, milk powder plants
  • Bitumen: Asphalt production, roads and roofing
  • Rubber and plastics: Injection molding, PVC tape, manmade fibers
  • Chemical: Agitators, reactors, drying plants, polymerisation, plastics
  • Paper and wood: Calender rolls, cardboard, washing machines, driers, floor board and wood panel
  • High temperature hot water circulation: Hospitals, heating systems

PRODUCT SPECIFITIONS

Technical Data

Suitable for

Technical Data

Casing: Nodular cast iron
Impeller: Cast iron, Stainless steel
Max. capacity: 350 m3/h / 1541GPM [50Hz]
400m3/h / 1761GPM [60Hz]
Max. delivery head: 110m / 361ft [50Hz]
160m / 525ft [60Hz]
Max. liquid temp: Thermal oil 350°C / 662°F
Hot water 190C / 374F
Max. pressure: 16bar / 232psi
Max. speed: 3600 rpm
